1960's Bezzera Boiler Testing

Lovely Copper and Brass Espresso Boiler..... Just for

y

The de-scaled boiler - getting ready for leak and pressure testing.....

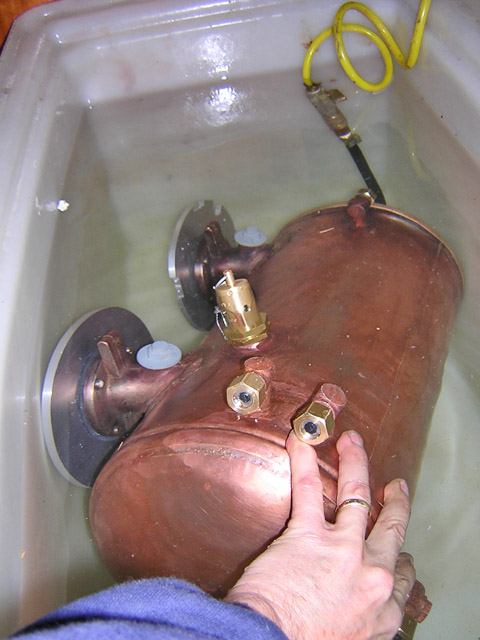

Leak testing....

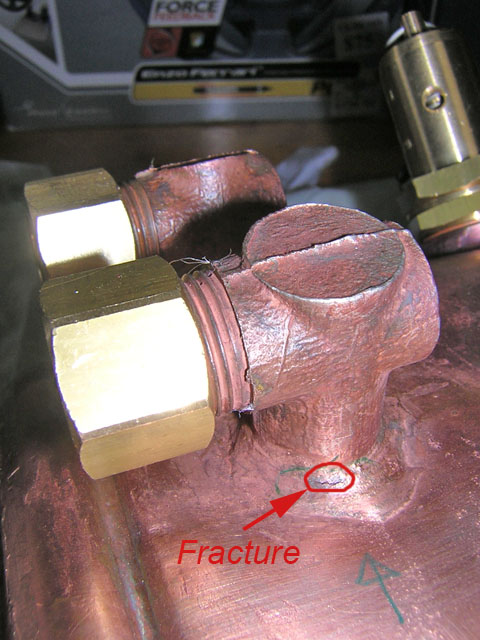

Yep a leak.....

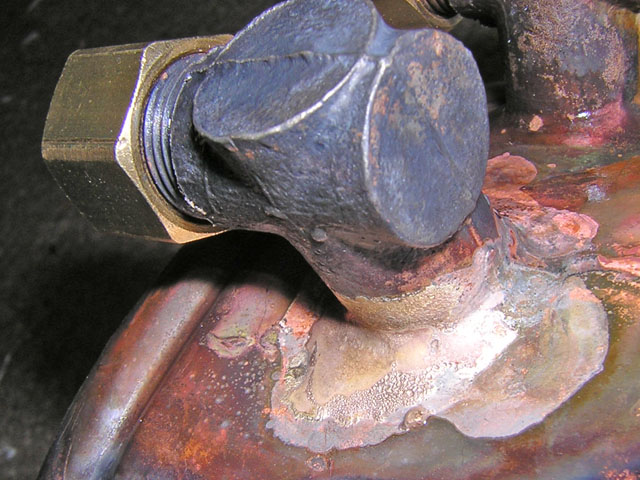

The repaired fracture (Using Silver Solder)

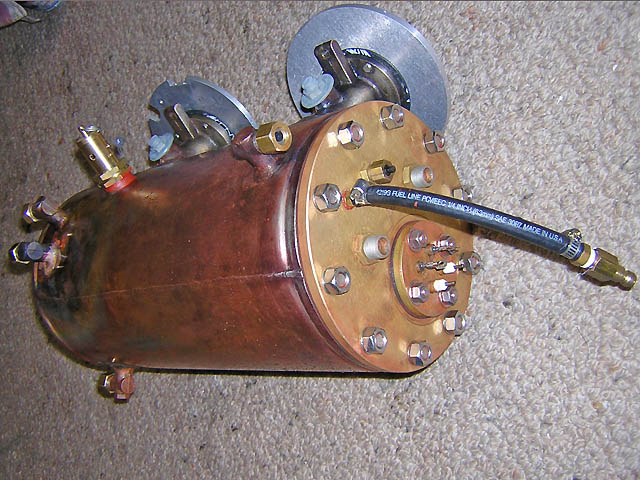

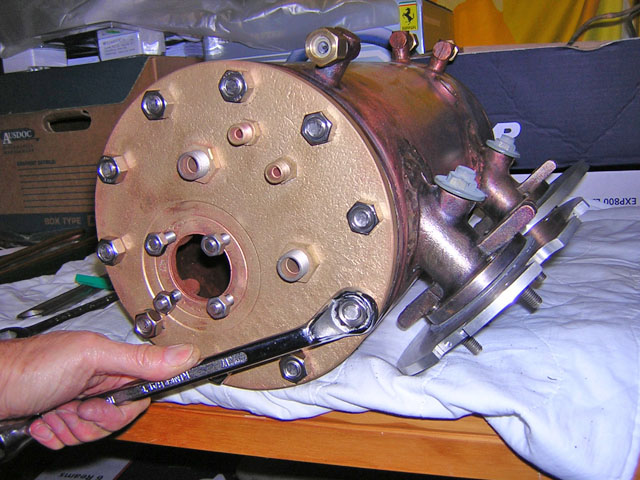

Testing complete..... Now for polishing and fitting back into the main chassis

These are low pressure boilers - operating at a maximum of  1.5 bar (about 22 psi). The pull handles on this type of design compresses the 1.5 bar to 9 bar (about 130 psi). This higher pressure is delivered to the group head and used to express the "shot" (30ml) of coffee......

	(
